How To Test Water Heater Element Without Multimeter

A thermostat is conventionally made of a bimetallic strip that expands to close a circuit and contracts to break it thereby allowing the heater to. To test the heating elements in your electric water heater you will first need to find them.

Pin On Building Projects

So without further ado.

How to test water heater element without multimeter. In this post we explore how to Test A Water Heater. Each element will have two electrical wires running to screws keeping the element in place. Set the multimeter to the proper range and test voltage on the incoming wiring.

You will notice a relief valve near the top of the water heater you can flip the handle up to open it. If the reading on your meter is anything other than. How to find your water heater elements.

Most modern electric tank-style water heaters have two heating elements. To test the heating elements in your electric water heater you will first need to find them. Connect the multimeter pin ends on point 1 3 as shown in the picture below.

Check This Differences Comparisons. How to test the Heating Element in a Water Heater. The essence of the Multimeter can supplant the component that isnt acceptable and this makes the Multimeter to move.

One at the top and one at the bottom. First turn off the breaker in your main electric panel to the water. The water heater element has no terminal so you dont have to worry about which one to test first.

Water heater elements have a relatively short lifespan. If the water is hot enough at appointed temperature the multimeter will point near Zero. If the tool reads 240V that means there is power on the setup.

Take 1 of the wires off of a water heater element. Water heater elements have a relatively short lifespan. Place the prongs of the multimeter on the terminal 1 and blue wire of the heating element.

You can find it on the side of the element. Old or small electric water heaters may only have one heating element. A thermostat is conventionally made of a bimetallic strip that expands to close a circuit and contracts to break it thereby allowing the heater to switch on or off automatically with the aim of maintaining the desired temperature.

Choose which heater element youd like to test first. A dial usually does this on the tool. How to find your water heater elements.

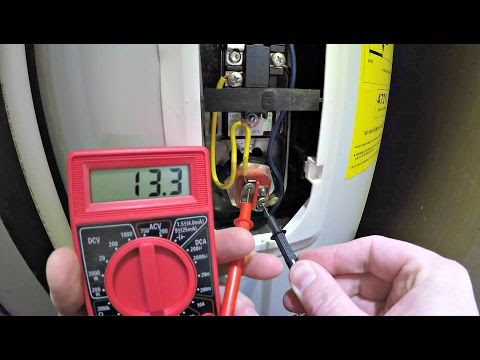

Easy quick tutorial video on how to test a hot water heater element using a multi-meter. Plus they can be weakened by mineral deposits in your water supply. Locate the hot water heaters circuit breaker in your electrical panel and turn it off.

How To Test Water Heater Element Without Multimeter. Test the Heating Element. Read more How To Test A Water Heater Thermostat.

If the water temperature is cold then the meter wont show reading. Locate the hot water heaters circuit breaker in your electrical panel and turn it off. Once done loosening the screw make a note of the wattage value of the heating element.

Find the loose end of one wire from the element you choose to test first. Locate the water valve at the bottom of the water heater. Each heater element has two wires that run to the screws holding together the heating element.

A dial usually does this on the tool. Leave one of the probs that are contacting the component face of the screw and put the rest of the test against the metal base that is appended to the component from where it enters the water heater. For this purpose fine-tune the knob of the meter to Rx1k resistance X 1000 ohms.

Set your meter to ohms mode for resistance and set the dial to the lowest range. Attach a garden hose to the emptying valve and turn the valve using a wrench. Use your screwdriver to loosen the screws just a bit and then remove the wires from the screws safely.

Each of a hot water heaters elements has 2 electrical wires running to screws that hold the element in place. Next place the prongs on terminal 2 and the blue wire of the heating element. Remove 1 wire it doesnt matter which one by finding its loose end and unraveling it from around the metal element.

Most residential water heaters operate on 220-volt current. The lowest setting can vary depending on your model. Gas vs Electric Water Heater Differences and Comparisons.

You can do this by unraveling the loose end of the metal element. Place one of the multimeter probes on a screw attached to the face of the element. We will need this wattage value to test the heating element of the water heater.

Then one screw terminal will be attached to the red lead and the other screw terminal will be connected to the black lead. Just follow these steps and you will be able to test the water heater element with the help of a digital multimeter despite having no electrical work experience. Most water heaters have two heating elements though there are some with only one element.

Plus they can be weakened by mineral deposits in your. This will help you detect if power is supplied between the upper heating element and blue wire. To use the multimeter and test your water heater element you will need to set the multimeter to the lowest setting for ohms resistance.

How Do You Test A Water Heater Element Take the multimeter and check its register to know whether your heating element is good or bad.
